ASSEMBLY REPORTING

Assembly Reporting is used to generate a user-filterable listing of items which are associated to a particular Assembly. This functions similarly to the Delivery and Status report, but focuses on configuration and installation hierarchy, whereas the Delivery and Status report is more appropriately used for full Aircraft status reports.

  1. Click Item Management and select Assembly Reporting.

  2. Find the Assembly you wish to view using the Search Type and Criteria filters.

  3. After selecting filters, click Generate.

  4. The results will appear and the filter will be minizied. To re-open the filters, click View Assembly Listing Filters.

  5. The report can be printed in PDF format using the View Details Rpt and View Summary Rpt buttons or in XML format using the Export Xml button. The Export Trace Documents button exports all Trace documents for each item in the assembly.

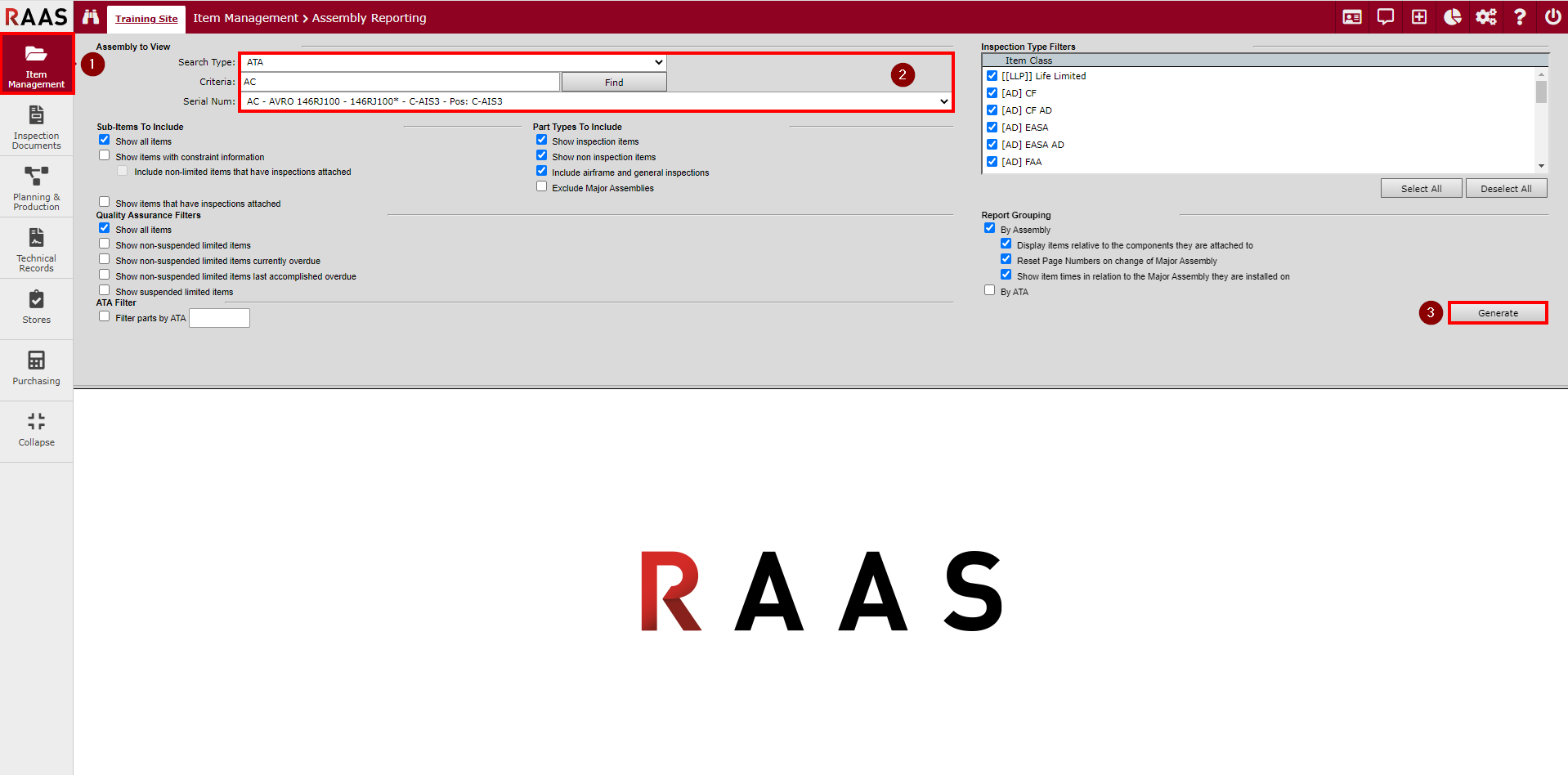

Figure 1: Assembly Reporting

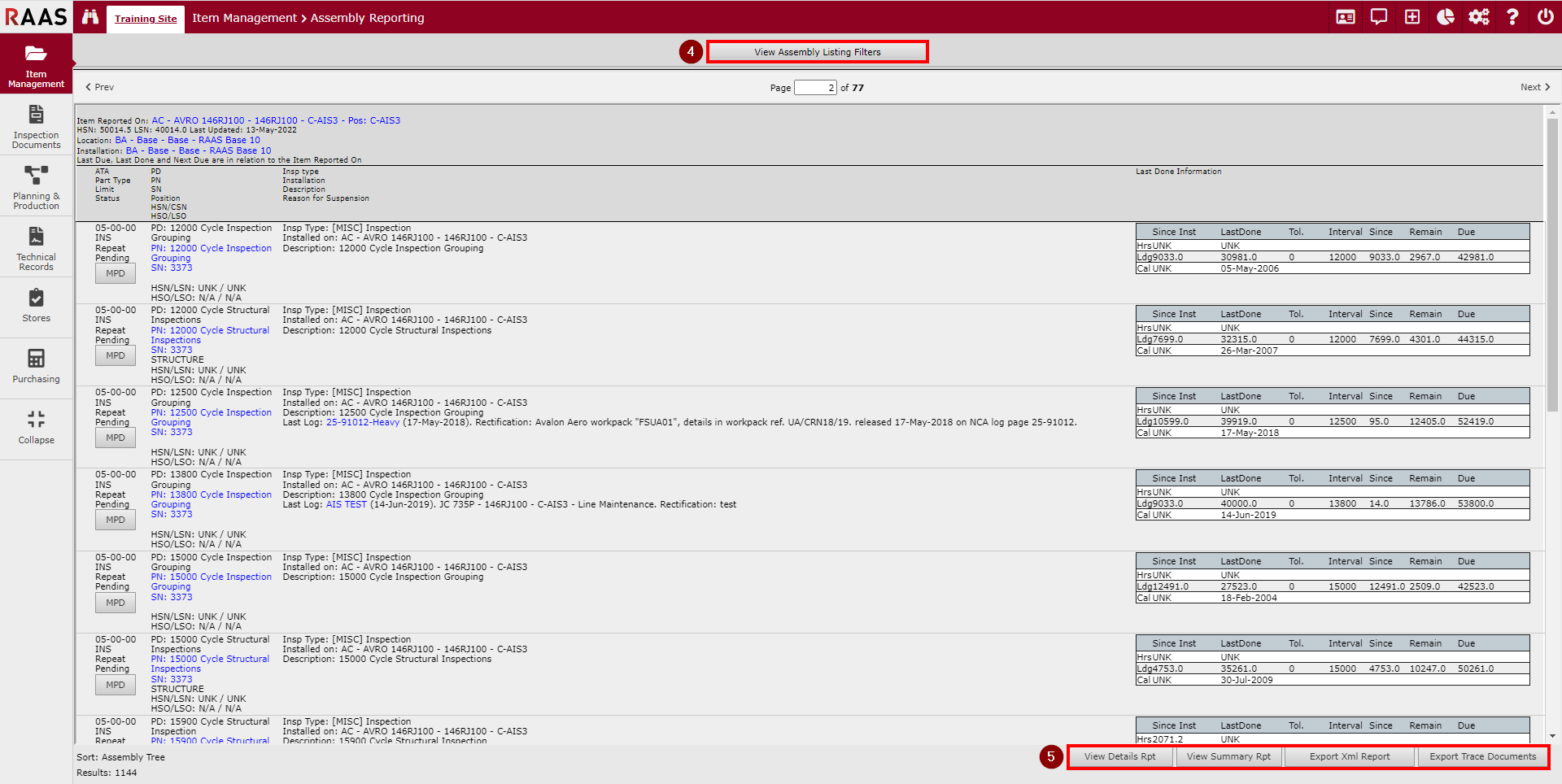

Figure 2: Assembly Report
